Large Membrane Switch

  This large multi-layered membrane switch was re-drawn, re-printed and assembled from scratch. Having only the supplied panel (in the before picture) to work from, it was an exercise in accurate measurement and careful reproduction to achieve the best result. The whole thing had to be stripped to recreate the circuit layers, adhesive and spacer layers before printing could proceed. This exercise shows what can be achieved and something we are only too keen to help with

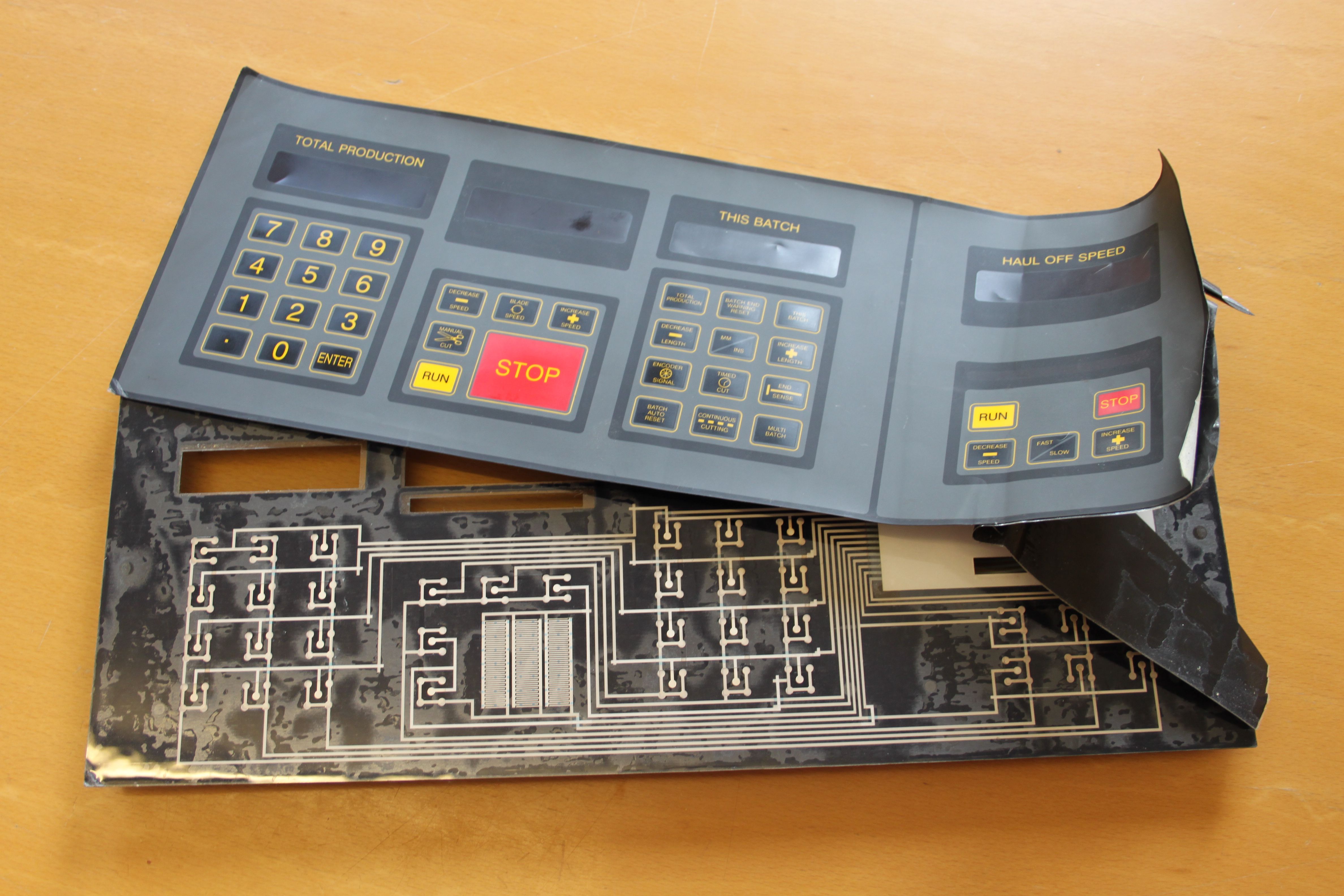

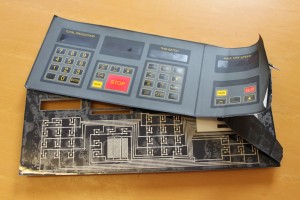

Large Membrane Switch large switch before pic This picture shows the 'before' situation! As you can see it was quite a task to undertake.
